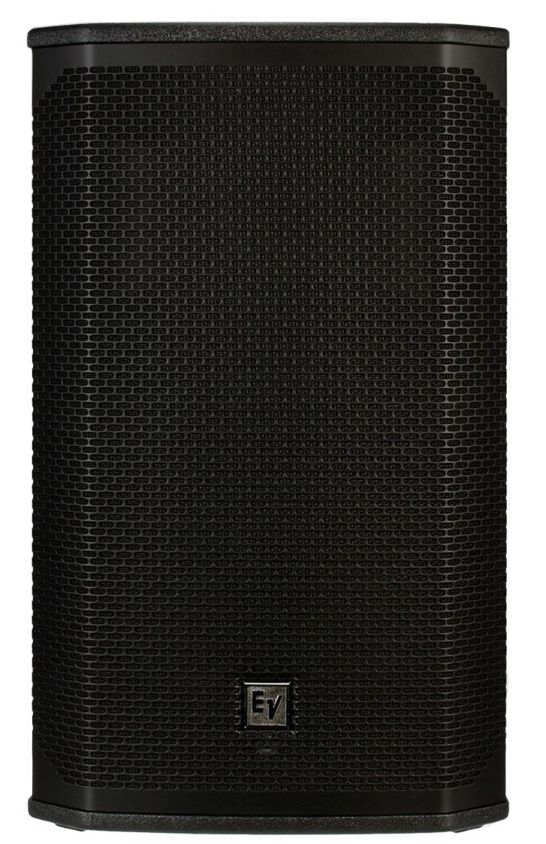

Electro-Voice EKX-12P 12" Active PA Speaker

Full Description

Sound that everyone can enjoy

Consistent coverage guaranteed. Whether you’re stood at the front, sides, or back of the audience, you’ll hear everything in detail. The patented waveguide boasts uniform bandwidth response, allowing for ultra-wide dispersion. Placed at the front of the enclosure, the waveguide minimises latency correction, giving you smooth consistency in every situation. This is live sound with a difference.

Ultimate performance

QuickSmartDSP offers best-in-class processing for easy setup and phenomenal sound. Take advantage of a wide range of user-programmable presets for instantly optimised audio. It’s as easy as plug in and play.

Professional hardware

The EKX-12P is fitted with professional-grade hardware for exceptional flexibility and ease-of-use. Eight M10 threaded mounting points allow you to stack your speaker with confidence. Position with precision thanks to the aluminium pole mount. And when it comes to transportation and manoeuvrability, the lightweight cabinet is easy to carry thanks to EV’s ergonomic handles.

Features

• Perfect for live and installation applications
• Huge power with 1500W peak output
• Exceptional bass response from a 12” woofer
• Clear highs from a 1” titanium compression driver
• Ultra-efficient class D amplifier
• Great sound at high volumes with up to 132dB peak SPL
• Precise and consistent coverage from EV-patented Signal Synchronised Transducers (SST)
• Best-in-class processing from a QuickSmart DSP
• Easy to use user interface with LCD screen and single rotary knob
• Superior performance in demanding environmental conditions thanks to an intuitive thermal management system
• Lightweight and compact wood enclosure for ultimate practicality
• Minimised speaker resonance thanks to internal bracing
• Scratch and scuff resistant EVcoat finish
• Easy to setup thanks to eight M10 threaded mounting points, aluminium pole mounts, and all metal handles

Specifications

• Speaker Type: Two-Way, Powered
• Maximum SPL: 132 dB
• Power Consumption: 1.8A
• Power Rating: 1500W
• Frequency Response (-3 dB): 60Hz - 18kHz
• Frequency Response (-10 dB): 50Hz - 20kHz
• Coverage (Nominal -6 dB) H: 90°
• Coverage (Nominal -6 dB) V: 60°
• LF Transducer: EVS-12M 12''
• HF Transducer: DH-1M 1'' Titanium Compression Driver
• Crossover Frequency: 1.7kHz
• Connector Type: 1 x Stereo RCA Input, 2 x XLR/TRS Combo Jack & 1 x XLR Link Output
• Enclosure Material: 15mm Plywood With EV Coat
• Grille: 18 AWG Steel With Powdercoat
• Suspension: 8 x M10 Threaded Mounting Points
• Weight: 18.8 kg
• Dimensions
  • Height: 607 mm
  • Width: 375 mm
  • Depth: 356 mm
