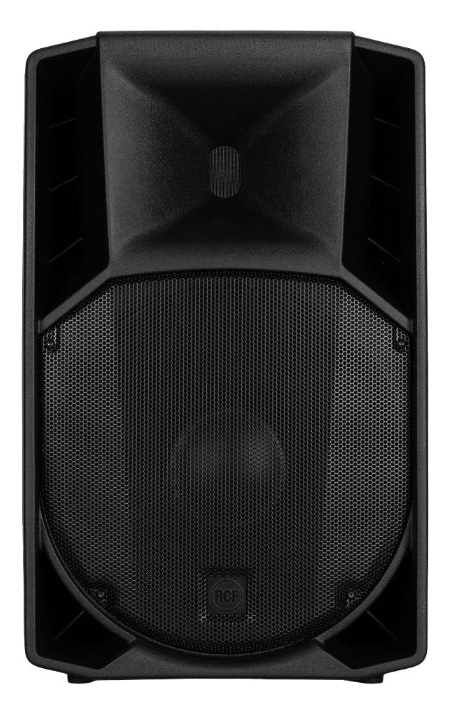

RCF 715 MK5 Digital active speaker 15" + 1.75, 700W RMS
£520.00
New
In stock: 10 available
Product Details
Features
- 130 dB Max SPL
- 1400 WATT 2-way peak power
- 90° x 60°, Wide dispersion constant directivity horn
- Innovative DSP Processing
- 1.75" Compression Driver
- 15" Woofer
- FiRPHASE Technology
- XBOOST Low Frequencies Enhancer
ART 715-A MK5 is a unique product in its category. The 1.75" compression driver offers unique vocal clarity and sound projection. The 15” woofer offers an extremely linear response and a precise, deep low frequency control. The transducers are produced using the most advanced assembly technologies. The amplifier delivers 1400 watts and is controlled by a DSP that takes care of crossover, equalisation, phase control, soft limiting and speaker protections.
Acoustical specifications
Frequency Response
45 Hz ÷ 20000 Hz
Max SPL @ 1m
130 dB
Horizontal coverage angle
90°
Vertical coverage angle
60°
Transducers
Compression Driver
1 x 1.0'', 1.75'' v.c
Woofer
1 x 15'', 2.5'' v.c
Input/Output section
Input signal
bal/unbal
Input connectors
XLR, Jack
Output connectors
XLR
Input sensitivity
-2 dBu/+4 dBu
Mic. Input Sensitivity
-32 dBu
Processor section
Crossover Frequencies
1600
Protections
Thermal, RMS
Limiter
Soft Limiter
Controls
Volume, Boost, MIC/Line
Power section
Total Power
1400 W Peak
High frequencies
400 W Peak
Low frequencies
1000 W Peak
Cooling
Convection
Connections
VDE
Standard compliance
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
PP Composite
Hardware
2 x M10
Handles
1 on top, 1 each side
Pole mount/Cap
35 mm insert
Grille
Steel
Color
Black
Size / Weight
Height
708 mm / 27.87 inches
Width
437 mm / 17.2 inches
Depth
389 mm / 15.31 inches
Weight
19.6 kg / 43.21 lbs
Shipping information
Package Height
750 mm / 29.53 inches
Package Width
500 mm / 19.69 inches
Package Depth
440 mm / 17.32 inches
Package Weight
23 kg / 50.71 lbs
