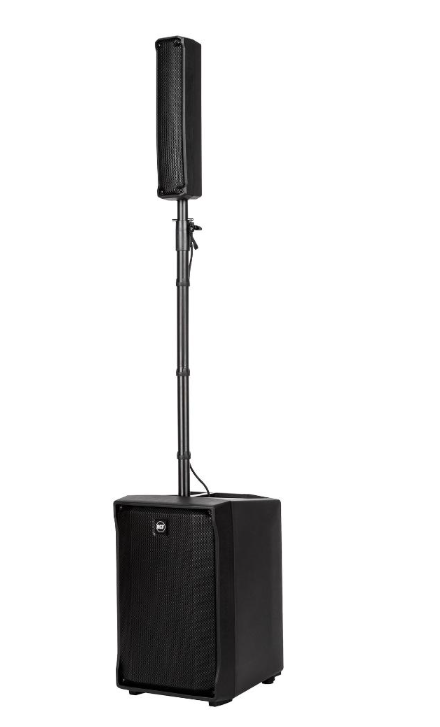

RCF EVOX J8 Active Two Way Portable Speaker Array
+5
+4
+3
+2

RCF EVOX J8 Active Two Way Portable Speaker Array

£730.00
New
In stock: 10 available
Product Details
Features
  • 128 dB Max SPL
  • 1400 Watt 2-way power
  • DSP Processing with FiRPHASE
  • 12" woofer, high power 2.5" voice coil
  • 8 x 2" ultra compact fullrange 1.0" voice coil
  • 2350x350x450 mm 92.5x13.77x17.71 in (HxWxD)
  • 23,8/52.5 kg/lbs

The RCF J8 features a line source satellite module with eight 2” full-range drivers paired with a high-powered 12” woofer in a bass reflex enclosure. All powered by on-board 1400 W Class D amplification. The EVOX J Series maintains a similar footprint to the original EVOX systems, now in a portable composite enclosure. The system offers stunning sound performance with crystal-clear vocal reproduction and unparalleled musical response.


Acoustical specifications
Frequency Response
40 Hz ÷ 20000 Hz
Max SPL @ 1m
128 dB
Horizontal coverage angle
120°
Vertical coverage angle
30°
Transducers
Fullrange
8 x 2.0'', 1.0'' v.c
Woofer
1 x 12'', 2.5'' v.c
Input/Output section
Input signal
bal/unbal
Input connectors
XLR, Jack
Output connectors
XLR
Input sensitivity
-2 dBu/+4 dBu
Processor section
Crossover Frequencies
220 Hz
Protections
Thermal, RMS
Limiter
Soft Limiter
Controls
Volume, Boost, Mic/Line
Power section
Total Power
1400 W Peak, 700 W RMS
High frequencies
400 W Peak, 200 W RMS
Low frequencies
1000 W Peak, 500 W RMS
Cooling
Convection
Connections
VDE
Standard compliance
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
PP Composite
Handles
1 Top
Grille
Steel
Color
Black, White
Size / Weight
Height
2285 mm / 89.96 inches
Width
400 mm / 15.75 inches
Depth
460 mm / 18.11 inches
Weight
20.2 kg / 44.53 lbs
Shipping information
Package Height
676 mm / 26.61 inches
Package Width
451 mm / 17.76 inches
Package Depth
581 mm / 22.87 inches
Package Weight
29.9 kg / 65.92 lbs
